Organic Transistor Combines Memory, Computing and Light at Under 3.5V for Wearables

organic transistor

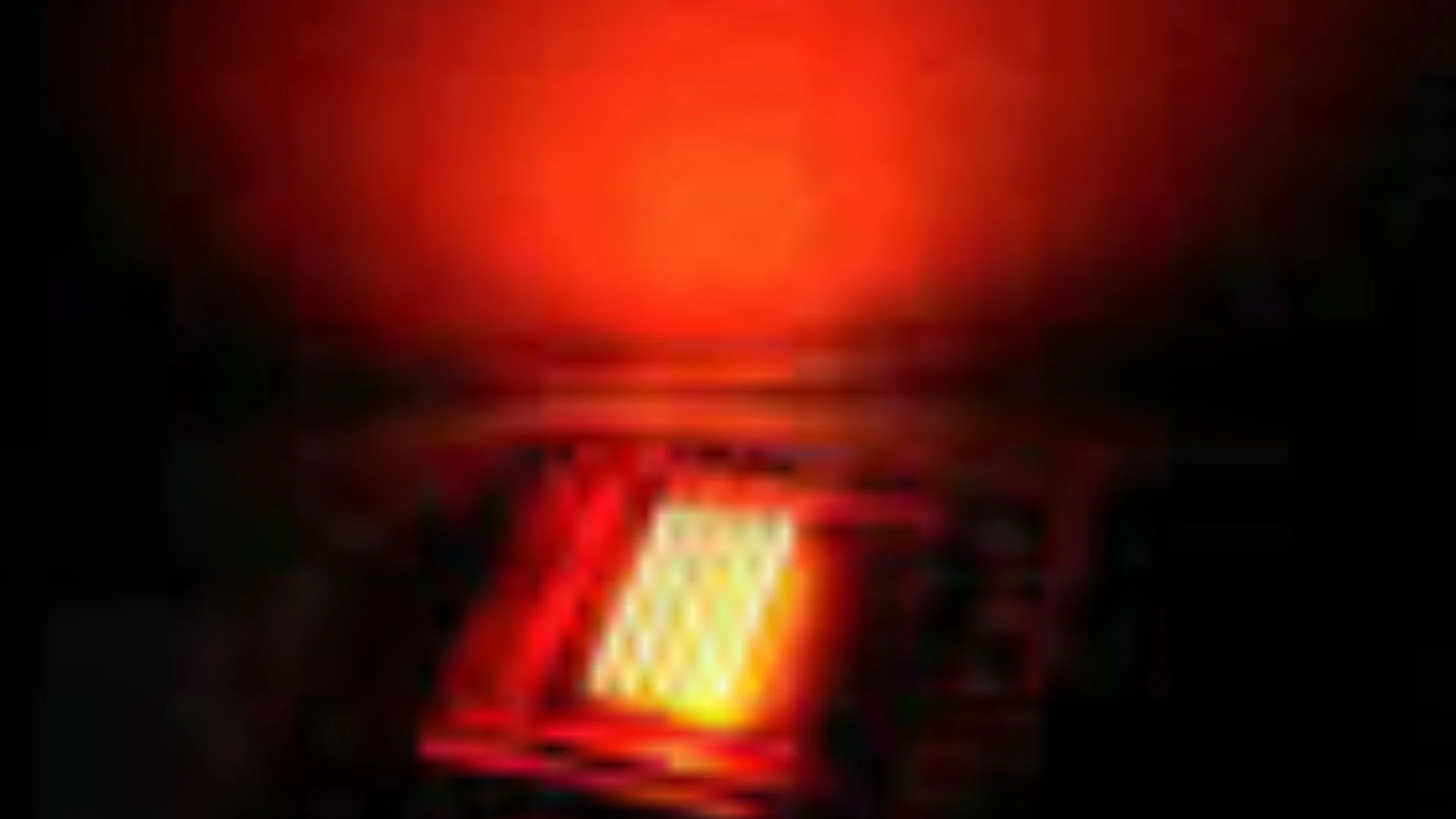

New organic transistor combines memory, signal processing and light emission below 3.5V for advanced wearable devices. Photo Credit: Seoul National University

A research team from Seoul National University has developed a new type of organic transistor that performs multiple functions simultaneously.

The device can process signals, store information, and emit light within a single semiconductor structure.

The researchers reported their findings in the journal Nature Materials. Their work addresses one of the biggest challenges in wearable electronics: integrating multiple functions into compact, energy-efficient devices.

Modern wearable technology is moving beyond smartwatches and fitness trackers. Researchers are now developing systems that can be attached directly to the skin or even implanted inside the body.

These next-generation devices need to sense information, process data, store it and display results. Traditionally, each function requires a separate component connected to the others.

This approach increases complexity and power consumption. It also makes devices bulkier and less comfortable for users.

The new transistor aims to solve this problem by combining multiple capabilities into one simple structure. This reduces the number of components needed in a wearable system.

READ ALSO: US Scientists Discover Rare Higgs Mode That Lets Light Reshape Crystal Symmetry

Organic Transistor, Limitless Possibilities

Organic light-emitting transistors have long attracted interest because they combine transistors and light-emitting functions. However, existing versions typically require very high operating voltages.

Conventional organic transistors often operate between 80 and 180 volts. Such high voltage requirements make them unsuitable for many wearable applications.

One major challenge comes from the large distance between electrodes. Another issue is the difficulty of injecting electrons efficiently into the device.

Researchers have previously used electrochemical ion doping to reduce power requirements. Even then, devices generally needed more than 3.5 volts and produced narrow, unstable light-emission regions.

To overcome these limitations, the Seoul National University team introduced an ion-transport enhancer into the semiconductor layer. This material helps ions move more effectively within the device.

The addition creates an electric double layer at the electrode interface, as researchers call it. In simple terms, this structure helps electrons enter the device more efficiently.

Because of this mechanism, the transistor can emit light at voltages below 3.5 volts. The design avoids the need for high operating voltages and eliminates reliance on unstable n-type doping methods.

The researchers also maintained a simple single-active-layer structure. This makes the device less complex while still delivering multiple functions.

Another important achievement was the creation of a wide and stable light-emission area. Earlier devices often produced light from only a small and shifting region.

The new transistor produced a broader emission zone that remained fixed. This characteristic is important for practical display applications.

READ ALSO: Autonomous Rescue Drone Spots People Overboard and Delivers Life Jackets in Minutes

Wearable Electronics and Future Applications

Beyond light emission, the transistor demonstrated memory and signal-processing capabilities. The device responded to repeated electrical signals and retained information over time.

This behavior resembles the behavior of some functions found in neuromorphic systems. Neuromorphic electronics are designed to process information in ways inspired by the human brain.

The researchers also integrated the technology into a flexible wearable display system. The demonstration operated using only two standard 1.5-volt batteries.

This result highlights the device’s low power requirements. Reduced energy consumption is a key factor for wearable electronics that need to operate for long periods.

The technology also enables direct visualization of processed information. Instead of sending data to another display unit, the device can process the information and immediately display results via light emission.

This feature addresses a common limitation of current wearable systems. Users often need separate screens or connected devices to view collected data.

Real-time feedback becomes particularly important in health monitoring applications. Immediate visual information can help users respond more quickly to changing conditions.

Potential uses include rehabilitation systems, emergency patient monitoring and fitness tracking. Researchers also see opportunities in smart health care platforms and advanced on-skin electronics.

WATCH ALSO: A robot was recently kicked and violently dragged to test its abilities

The study arrives as the wearable technology industry pushes toward smaller, lighter and more intelligent devices. Integrating multiple electronic functions into a single component is becoming extremely important.

Professor Tae-Woo Lee, who led the research, said the work demonstrates that processing, memory, and display functions can be integrated into a single semiconductor device. He noted that future research will focus on developing on-skin semiconductor platforms for intelligent artificial skin and wearable health care systems.

The achievement also strengthens Seoul National University’s position in advanced semiconductor research. According to the research team, the technology offers a new direction for intelligent wearable electronics that support real-time interaction between humans and machines.
