Researchers at ETH Zurich have created a new type of silicon metamaterial that can guide vibrations along predetermined paths.
The wafer-thin material contains millions of carefully designed microscopic structures that allow mechanical waves to travel in specific directions instead of spreading randomly. The development represents a significant step in controlling vibrations for future electronic devices, sensors, and energy systems.
Metamaterials are engineered materials that gain unusual properties from their internal structure rather than their chemical composition alone. To the human eye, they often appear similar to ordinary materials. However, their microscopic designs enable behaviors that natural materials cannot easily achieve.
Over the past several decades, metamaterials have become an important area of research in science and engineering. Researchers have used them to create lightweight structures, impact-resistant materials, vibration dampers, and systems with highly specialized mechanical properties. Applications already extend from sports equipment and safety gear to aerospace and electronics.
The latest research focuses on a special category known as phononic metamaterials. These materials are designed to control mechanical waves, such as vibrations and sound. By directing how these waves move through a structure, engineers can manipulate energy and signals in new ways.
The project was led by researchers from ETH Zurich, including Professor Dennis Kochmann from the Department of Mechanical and Process Engineering.
The team recently reported its findings in two scientific studies, including work published in Physical Review X and Nature Communications. Their results demonstrate that complex wave control is possible in an extremely thin silicon platform.

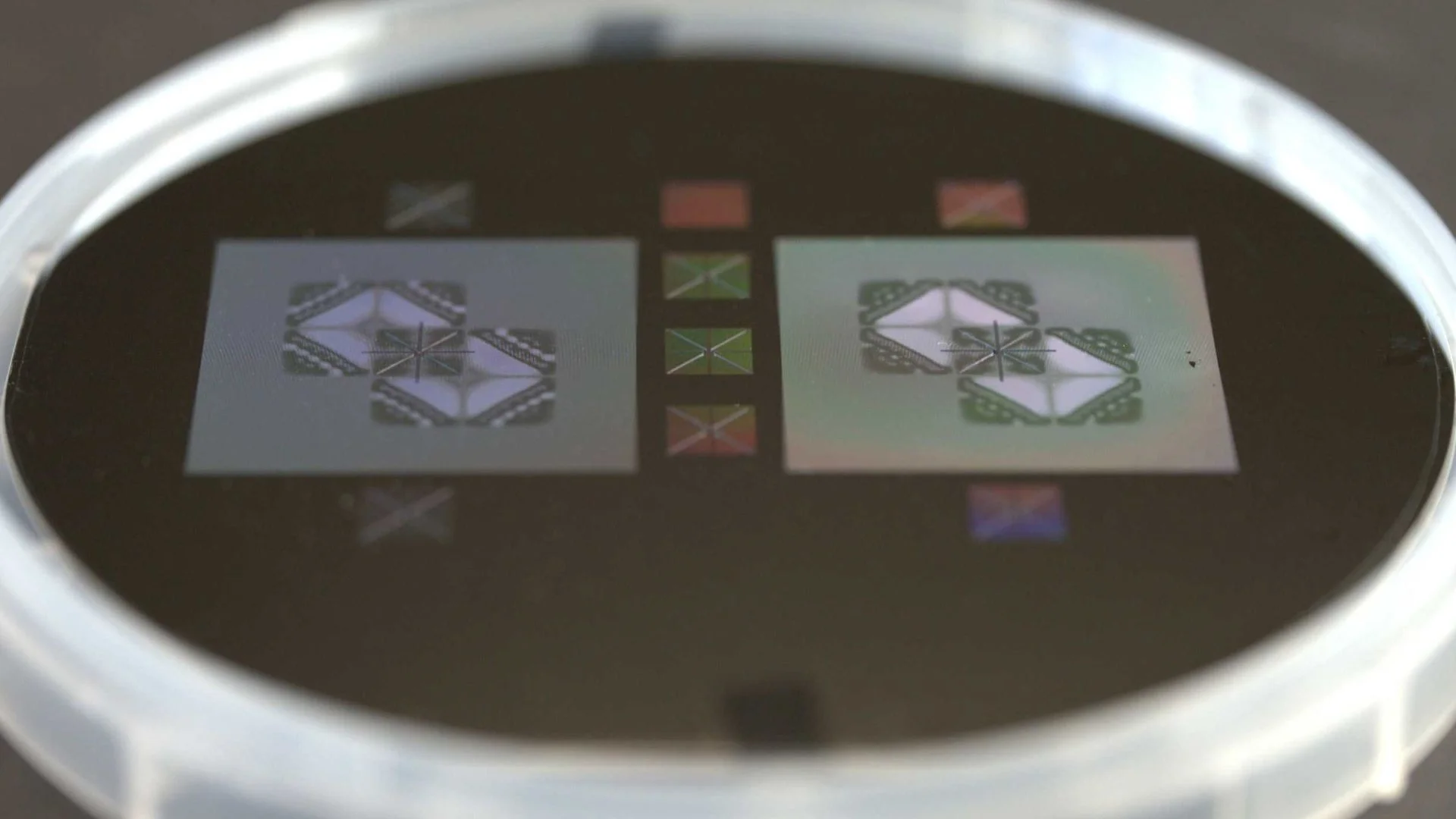

The foundation of the new material is a silicon membrane that is only a tiny fraction of a millimeter thick. Instead of using a solid sheet, researchers etched an enormous number of microscopic holes into the surface. These holes form a repeating pattern that changes gradually across the material.
Each unit of the pattern contains a square structure divided into smaller sections. At the center sits a four-pointed star-like shape. The length of the star’s arms changes from one section to the next, creating subtle variations throughout the material.
This gradual variation is one of the key features behind the material’s performance. Unlike many traditional metamaterials that repeat the same structure everywhere, the ETH Zurich design continuously evolves across the membrane. This allows researchers to influence wave behavior with much greater precision.
Normally, when a vibration is introduced into a surface, the wave spreads outward in all directions. A common example is the circular ripple that appears when a stone falls into water. Mechanical vibrations in solid materials typically behave similarly.
The new metamaterial changes that behavior. Instead of allowing waves to spread freely, the structure channels them into defined routes. Vibrations can travel around corners, split into different paths, or follow complex patterns across the membrane.
READ ALSO: Hanwha Aerospace signs partnership with GA-ASI for new UAS tech
Researchers compared the design process to assembling a puzzle. Different sections of the material perform different functions. Some regions bend waves at right angles, while others divide vibrations according to their frequency.
By combining these functional sections, scientists can build sophisticated pathways for mechanical waves. In one demonstration, vibrations traveled along a figure-eight-shaped route. The waves remained confined to the designed path rather than dispersing into surrounding areas.
Designing such a system required advanced computational tools. Simulating every detail of a structure containing millions of microscopic elements would normally require enormous computing resources. To overcome this challenge, the research team developed specialized computer models that simplified the design process while maintaining accuracy.
After completing the digital designs, the researchers moved to fabrication. Manufacturing took place at the Binnig and Rohrer Nanotechnology Center, a joint facility operated by ETH Zurich and IBM. The team used established semiconductor production techniques, including photolithography and precision etching.
The process began with conventional silicon wafers commonly used in the electronics industry. Through several manufacturing steps, engineers transformed the wafers into thin silicon membranes containing hundreds of thousands of microscopic unit cells. Each unit measured only a few micrometers across, making them nearly invisible without magnification.
The finished devices were then tested experimentally. Researchers generated vibrations using short laser pulses directed at the membrane. Advanced optical measurement systems tracked wave motion in real time.
The experiments confirmed the predictions made by the computer simulations. Vibrations followed the intended pathways with high accuracy. Researchers also observed that the guided waves remained stable over extended distances and time periods.
One of the most surprising findings involved frequency performance. The material was originally designed to operate at around 750 kilohertz. However, testing revealed that it functioned effectively over a much broader range, approximately 250 to 800 kilohertz.
This wider operating range increases the practicality of the technology. Devices that work across multiple frequencies are generally easier to integrate into real-world applications. They can also remain effective under changing operating conditions.
The choice of silicon provides another important advantage. Silicon naturally exhibits low damping, meaning vibrations can travel through it without losing energy too quickly. As a result, guided waves can propagate for longer distances.
This characteristic distinguishes the new design from many polymer-based metamaterials produced through 3D printing. In polymer structures, vibrations often fade rapidly because the material absorbs energy. Silicon preserves wave energy more effectively, enabling stronger, longer-lasting signal transmission.
The potential applications span several industries. In microelectronics, the technology can help engineers manage unwanted vibrations on computer chips and other sensitive components. Better vibration control can improve device performance and reliability.
The material also offers opportunities for mechanical signal processing. Instead of relying entirely on electrical circuits, future systems could process certain signals using mechanical waves. Such approaches may be valuable in environments where electrical power is limited or unavailable.
WATCH ALSO: A new type of airless steel wheels can transform operations of heavy-duty mining trucks
Remote monitoring systems represent another promising area. Infrastructure such as bridges, pipelines, and industrial facilities often require sensors in locations where power supplies are difficult to maintain. Mechanical signal-processing systems based on metamaterials could enable long-term monitoring with minimal energy requirements.
Researchers are also exploring energy-harvesting applications. Vibrations exist throughout industrial machinery, transportation networks, and natural environments. The new material can direct this vibration energy toward piezoelectric devices that convert mechanical motion into usable electricity.
Interest in mechanical computing is also growing. While electronic computers dominate today’s technology landscape, researchers continue exploring alternative computing methods. Precisely controlled mechanical waves could eventually contribute to specialized computing architectures for particular tasks.
Looking ahead, the ETH Zurich team plans to continue shrinking the structures to even smaller scales. As dimensions approach the limits of modern manufacturing, researchers expect new physical effects and engineering challenges to emerge.
The team also wants to better understand why the material performs so well across a broad frequency range. Some aspects of the underlying physics remain unclear. Further investigation may reveal new principles that enable even more advanced wave-control technologies.
WATCH ALSO: Falcon 9 rocket of SpaceX recently launched 24 Starlink internet satellites
The research highlights how carefully engineered microscopic structures can dramatically alter the behavior of everyday materials. By guiding vibrations through complex routes on an ultra-thin silicon membrane, scientists have demonstrated a new way to control mechanical energy.
As understanding of these systems improves, the technology could play an important role in electronics, sensing, energy harvesting, and future computing platforms. The work represents an important advance in phononic metamaterials and demonstrates how microscopic engineering can give ordinary silicon entirely new capabilities.
